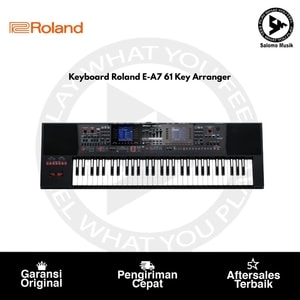

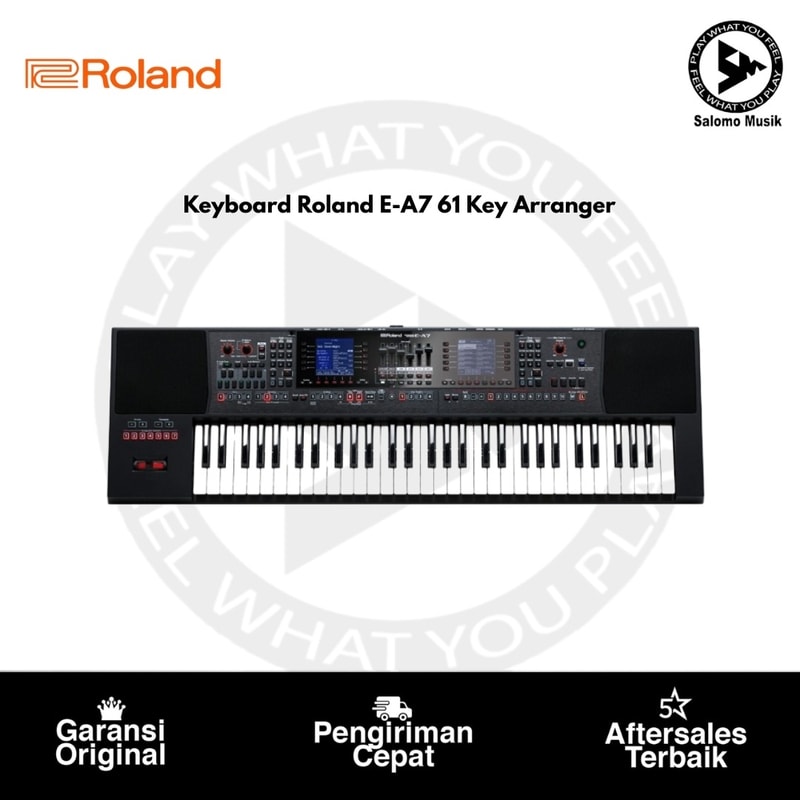

Keyboard Arranger Roland EA7 61Key Original
KEYBOARDKeyboard61 keys (with velocity)SOUND GENERATORMaximum Polyphony128 voices (varies according to the sound generator load)Parts4 keyboard parts (UP1, UP2, UP3, LWR) + 16 song partsTones- Preset Tone: Over 1,500 Tones
- Preset Drum Kit: Over 100 Drum Kits
* GM2 compatible sounds are included.
- User Tone: 256 Tones
- User Drum Kit: 128 Drum KitsFavorite50 favorite tones can be registered.Melody IntelligentYesSTYLESStyles- Preset Style: Over 600 Styles
- User Style: Unlimited number (storage on internal memory and USB flash drive)Style ControlsIntro x 4, Main x 4, Fill x 4, Break, Ending x 4One Touch Memories4 programmable registrations per styleStyle Makeup ToolsInstrument-oriented editingStyle ComposerYesSONGSRealtime PlayerSMF (Format 0/1), KAR, MP3, WAV, MP3+CDGTempo Change- 20–250 BPM for SMF (and Style)
- 75–125% for MP3 and WAV filesPart Mute- Track Mute: SMF (and Style)
- Center Cancel: MP3 and WAVSong Chord ExtractorAutomatic chord detection for SMF filesLyrics DisplaySMF, KAR, MP3SMF Makeup ToolsInstrument-oriented editingSMF Mark & JumpYes (4 storable locations)Song (Audio) RecordingFormat: 16-bit linear, 44.1 kHz, WAVDemo SongYesEFFECTSReverb8 types (selectable via Makeup Tools)Chorus8 types (selectable via Makeup Tools)MFX84 types for keyboard parts (selectable via Keyboard Part MFX), A & B for Style and SMF section (selectable via Makeup Tools)Master EQ6 Presets + 1 User MemoryMaster Compressor6 Presets + 1 User MemoryInput EffectReverb 6 types, Delay 2 typesUSER PROGRAMSUser Programs- Preset (Music Assistant + Preloaded data): Over 500 User Programs
- User: Up to 100 User Programs are included per User Program SetUser Program SetsUnlimited number (storage on internal memory and USB flash drive)SAMPLING/SAMPLE IMPORTFormat16-bit linear, 44.1 kHz, WAVWave Expansion Memory128 MB for Sampling/Sample ImportNumber of Samples512Multisample FunctionYes
* Samples and multisamples can be exported to USB Flash Memory as User Tone or User Drum Kit.
* Samples and multisamples can be used as wave data for the sound engine.SCALE TUNINGSMemory Buttons3 user scale Memories and Equal temperamentUser Scale Buttons- Instant quarter-tone tuning of each note of a scale (C–B)
- Adjustable tuning range (-64–+63 cent) for each button
- Tunings can also be saved to User Program memories.OTHERSPads6 pads for triggering phrases and tones and Stop Pad
* Phrases are tempo-synchronized with Styles or SMF, and support for chord detection.Style/Song FinderYesControllersAssignable Lever
Assignable Switch x 7
Assignable Control Pedal
Part Level Slider x 6
Multifunction PadsDisplayDual Graphic LCD (160 x 160 dots x 2, with backlit)ConnectorsPHONES jack: Stereo 1/4-inch phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
EXT IN jack: Stereo miniature phone type
INPUT jacks (L/MONO or MIC, R): 1/4-inch phone type
PEDAL jacks (HOLD, EXPRESSION, CONTROL)
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (USB MIDI)
DC IN jackSpeakers2 x 10 cmRated Power Output2 x 12 WPower SupplyAC AdaptorCurrent Draw1,500 mAAccessoriesOwner's Manual
Music Rest
AC Adaptor
Power Cord (for AC Adaptor)Options (sold separately)Keyboard Stand : KS-11Z
Pedal Switch: DP series, FS-5U
Expression Pedal: EV-5
USB Flash Memory (*)
* Use USB Flash Memory (supports USB 2.0 Hi-Speed Flash Memory) sold by Roland. We cannot guarantee operation if other products are used.
