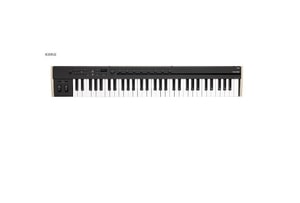

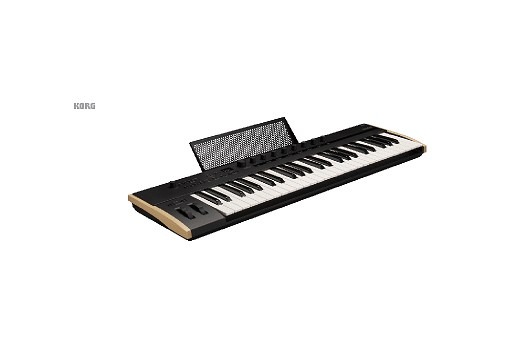

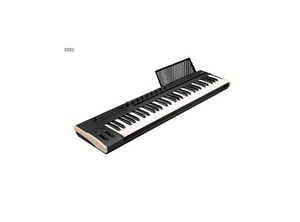

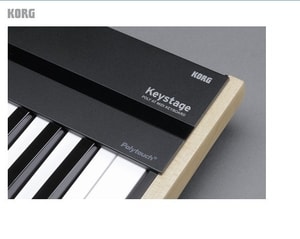

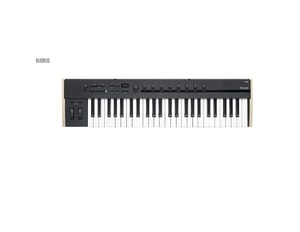

Keyboard Keystage-49: Polytouch keyboard*, 49 keys Keystage-61: Polytouch keyboard*, 61 keys Features velocity sensitivity, aftertouch and polyphonic aftertouch
Velocity curves: 21 (—10–0–+10)
Octave range: 7 (—3–0–+3) Controllers Pitch bend wheel, modulation wheel, parameter control knobs × 8
VOLUME knob, SETTINGS button, WRITE button, EXIT button, SHIFT button, ARP button, CHORD button, VALUE ^/ buttons, VALUE dial, PAGE —/+ buttons, transport buttons, TEMPO button, OCTAVE —/+ buttons Display Main display: organic EL (electro-luminescence) display
Sub display: organic EL displays × 8 Scenes No. of scenes: 16 Arpeggiator Arpeggio rhythm patterns: 20 Chord mode Preset chord sets: 32
User chord sets: 32 Input/output jacks and ports USB port, MIDI (IN, OUT connectors), EXPRESSION jack, DAMPER jack, AUDIO OUT (L/MONO, R jacks), headphone jack Audio output AUDIO OUT (L/MONO, R): 6.3 mm TS phone jack (unbalanced)
Headphones: 6.3 mm stereo phone jack Control inputs DAMPER (half-damper supported)
EXPRESSION MIDI IN, OUT USB Type B
MIDI/audio interface
MIDI: 1 in/1 out
Audio: 2 ch out
Audio format: 44.1 kHz, 16-bit Power supply USB bus power or AC adapter (9 V DC, : Korg KA350, sold separately)
Power consumption
5 V/500 mA or less (when powered via USB) Power consumption 4 W (when using an AC adapter) Dimensions (W × D × H) Keystage-49: 814 × 234 × 82 mm/32.05 ̋ × 9.21 ̋ × 3.23 ̋
Keystage-61: 979 × 234 × 82 mm/38.54 ̋ × 9.21 ̋ × 3.23 ̋ Weight Keystage-49: 4.2 kg/9.26 lb.
Keystage-61: 5.0 kg/11.02 lb. Included items USB cable (Type A-Type B), expansion plate, Quick Start Guide, Precautions Accessories (sold separately) Volume/expression pedal (XVP-20)
Foot controller (EXP-2)
Damper pedal (DS-1H)
Pedal switch (PS-1, PS-3)
AC adapter (KA350)
