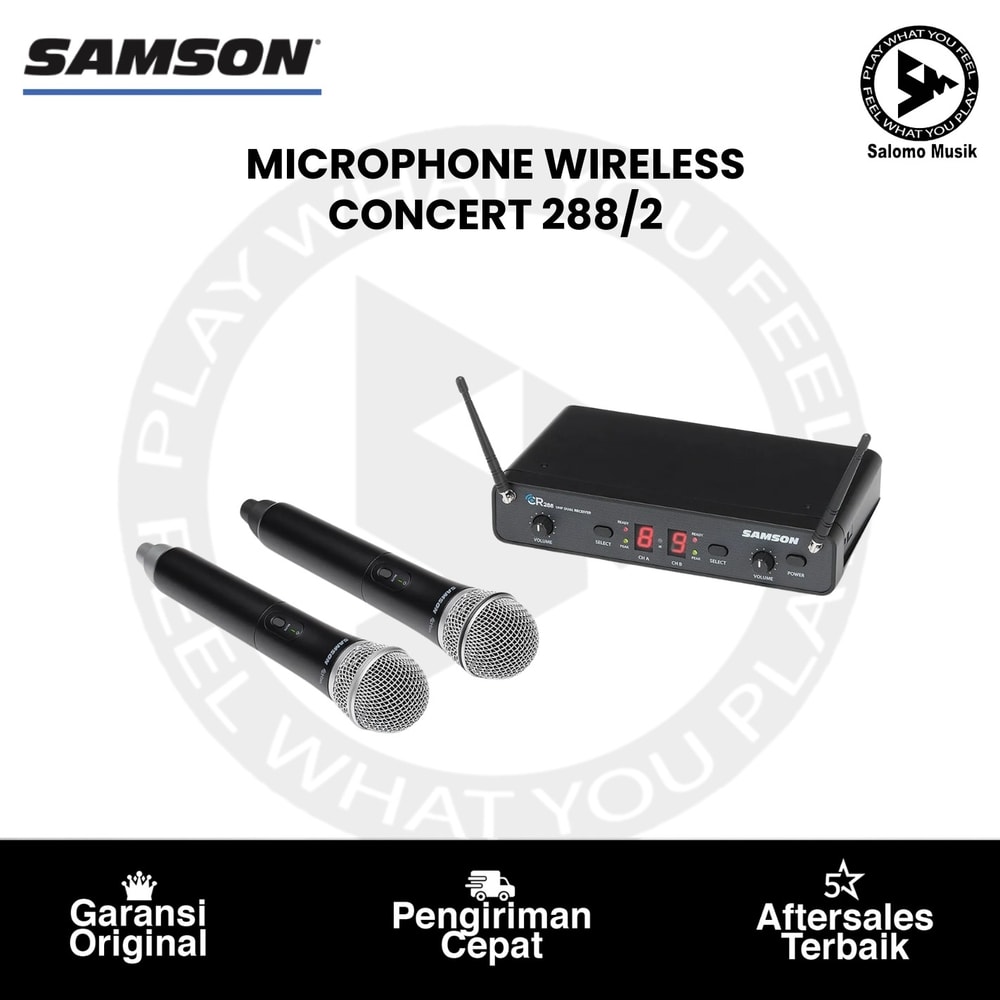

Concert 288 Presentation System
Dual-Channel UHF Wireless System
Take the worry out of wireless with the Concert 288 presentation wireless system. With easy setup, flawless operation and premium sound, it's the ideal high-performance UHF wireless solution for a variety of business, house of worship, Q&A and educational presentations that require two users.
Specifications:
System
- Working Range: 300' (100m) line of sight
- Audio Frequency Response: 50 Hz - 15 kHz
- T.H.D. (Overall):
- Dynamic Range: >100 dB A-weighted
- Signal to Noise: >85 dB
- Tone Key Frequency: 32.768 kHz
CB288 Belt pack Transmitter
- Input Connector: Mini-XLR (P3)
- Input Impedance: 1MΩ
- Input Gain Range: 38 dB
- RF Power: 10 mW EIRP
- Power Requirements: Two AA (LR6) alkaline batteries
- Battery Life: 8 hours
- Dimensions: 3.75" x 2.44" x 0.75" / 96mm x 62mm x 18.5mm
- Weight: 0.2lb / 93g
CR288 Receiver
- Audio Output Level - Mix Unbalanced: +14 dBu
- Audio Output Level - Balanced: +14 dBu
- Audio Output Impedance - Unbalanced: 1k Ohms
- Audio Output Impedance - Balanced: 470 Ohms
- Sensitivity: -100 dBm / 20 dB sinad
- Image Rejection: >50 dB
- Operating Voltage: 15 VDC 300mA
- Dimensions (LxWxH): 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
- Weight :0.99lb / 450g
